Home › Robotics › FJDynamics RCM01

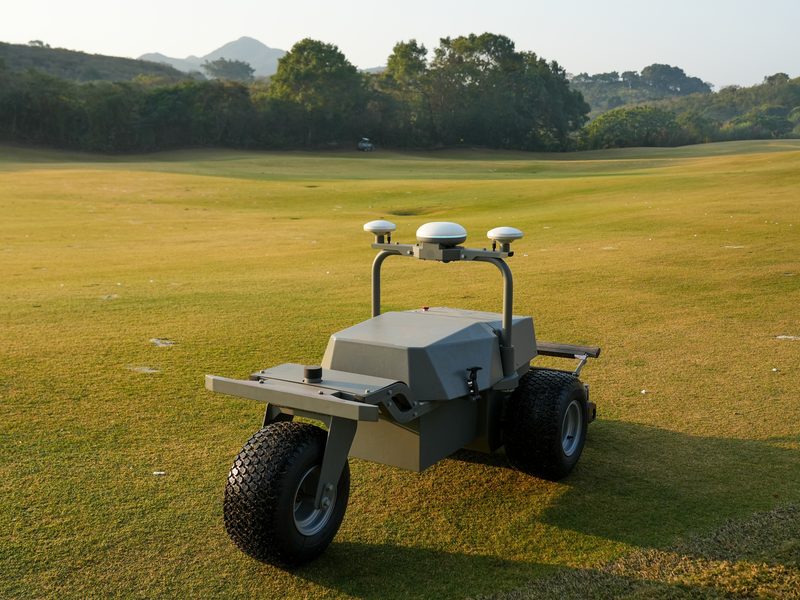

FJDynamicsRCM01 Autonomous Reel Mower
FJD RCM01 Autonomous Reel Mower · Reel Mowers
Operating weight364 kg
Full specifications
Metric and imperial as published by FJDynamics. 28 values shown. 2 further values are still being confirmed with the manufacturer and are not shown.
Powertrain
| Charging Time | 5 h | |
|---|---|---|
| Battery Life | 10 h | |
| Battery Capacity | 8 kWh | |
| Fast Battery Swapping | Standard | |
| Rated Operating Voltage | 48 V DC |
Other
| Cutting Mode | Customized Angle Mowing | |
|---|---|---|
| Boundary Type | Virtual Wire | |
| IP Rating | IPX4 | |
| Positioning | RTK & LiDAR | |
| Operating Temperature | -20 to 45 C | -4 to 113 F |
| Software Update | OTA | |
| Connectivity | 4G, Wireless Connectivity |
Cutting
| Reel Width | 685 mm | 27 in |
|---|---|---|
| Reel Diameter | 177 mm | 7 in |
| Cutting Width | 685 mm | 27 in |
| Reel Speed | 300-2200 RPM | |
| Reel Unit Weight | 65 kg | 143.3 lb |
| Reel Unit Dimensions | 1000x370x350 mm | 39.4x14.6x13.8 in |
| Cutting Height | 7-44 mm | 0.3-1.7 in |
| Number of Reels | 1 Eight blades per reel. |
Performance
| Weight | 364 kg | 802.5 lb |
|---|---|---|
| Max Mowing Area per Charge | 30,000 m2 | 7.4 acre |
| Max Mowing Slope | 15 deg | 15 deg |
| Max Climbing Ability | 20 deg | 20 deg |
| Max Mowing Area per Hour | 3,000 m2 | 0.74 acre |
Dimensions
| Length | 1,905 mm | 75 in |
|---|---|---|
| Height | 1,077 mm | 42.4 in |
| Width | 1,077 mm | 42.4 in |
About the FJDynamics RCM01 autonomous reel mower
Autonomous reel mowers deliver the close, clean cut that fine turf needs, on a planned route, so greens, tees and fairways can be cut consistently and on schedule without tying up a crew.
The FJDynamics RCM01 is available to buy from X-Iron, with genuine parts and support. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
