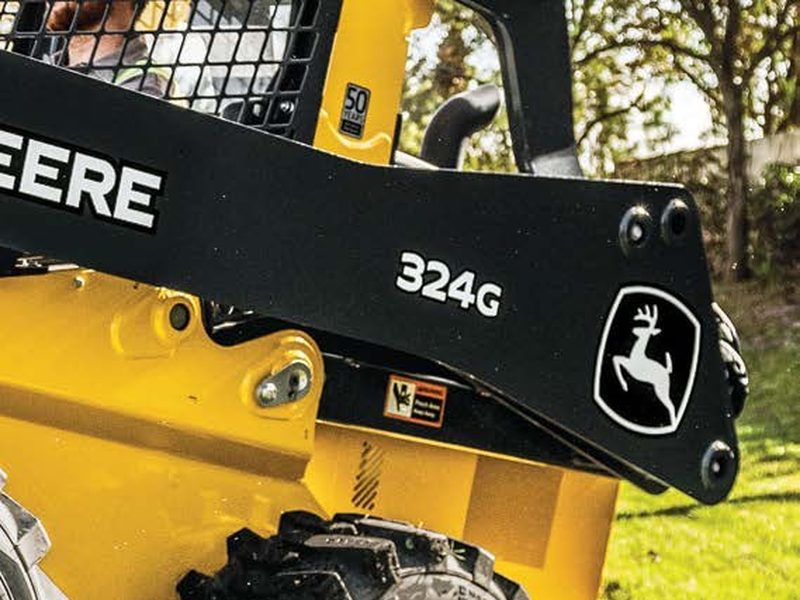

John Deere324G Skid Steer Loader
John Deere 324G Skid Steer Loader (Wheeled) · Skid Steer Loaders
Full specifications
Metric and imperial as published by John Deere. 33 values shown. 2 further values are still being confirmed with the manufacturer and are not shown.
Performance
| Bucket Breakout Force (construction bucket) | 2,724 kg | 6,000 lb |
|---|---|---|
| Operating Weight | 3,496 kg Base machine, without optional counterweights or attachments. | 7,700 lb |
| Bucket Breakout Force (foundry bucket) | 3,973 kg | 8,750 lb |
| Boom Breakout Force (foundry bucket) | 2,384 kg | 5,250 lb |
| Rated Operating Capacity (with counterweight set) | 1,294 kg Optional configuration, not the standard capacity. Counterweights come in sets of one, two or three at 78 kg (172 lb) each. | 2,850 lb |
| Tipping Load | 2,443 kg | 5,380 lb |
| Max Travel Speed (2-speed high, standard) | 19.3 km/h Two-speed travel is standard on this machine. Low-range speed is not published. | 12 mph |
| SAE Rated Operating Capacity (50% tipping, base) | 1,221 kg | 2,690 lb |
Undercarriage
| Wheelbase | 1,120 mm | 44.2 in |
|---|---|---|
| Standard Tyre Size | 12 x 16.5 12 PR SKS |
Engine
| Rated Power (gross, ISO 14396) | 55 kW | 74 hp |
|---|---|---|
| Peak Torque | 280 280 Nm / 207 lb-ft at 1,800 rpm. | |
| Engine Model | Yanmar 4TNV98CT Four-cylinder turbocharged. An optional Yanmar 4TNV98T is available at Interim Tier 4 / Stage IIIA. | |
| Fuel Tank | 79 L | 21 gal |
| Emission Standard | EPA Final Tier 4 / EU Stage IV | |
| Displacement | 3.3 L | |
| Net Power (SAE J1349 / ISO 9249) | 52.5 kW Net at the flywheel. 52.7 kW / 71 hp on the optional Interim Tier 4 engine. | 70 hp |
| Rated Speed | 2,500 rpm |
Working Range
| Dump Reach (foundry bucket) | 760 mm 950 mm / 37.3 in with the construction bucket. | 29.9 in |
|---|---|---|
| Bucket Rollback at Ground Level | 34 deg | 34 deg |
| Dump Angle at Full Lift Height | 41 deg | 41 deg |
| Dump Height (foundry bucket) | 2,590 mm 2,430 mm / 95.5 in with the construction bucket. | 102.1 in |
| Max Height to Hinge Pin | 3,200 mm Hinge pin height is the reach figure John Deere publishes for this machine. | 126 in |
Dimensions
| Angle of Departure | 28 deg | 28 deg |
|---|---|---|
| Ground Clearance | 240 mm | 9.3 in |
| Overall Length (with foundry bucket) | 3,460 mm 3,710 mm / 146.1 in with the construction bucket. | 136.3 in |
| Overall Height (to top of ROPS) | 2,060 mm | 81.1 in |
| Front Turn Radius (foundry bucket) | 2,020 mm | 79.6 in |
| Overall Width (without bucket) | 1,700 mm | 67 in |
| Overall Length (without bucket) | 2,850 mm | 112.3 in |
Hydraulics
| System Pressure at Couplers | 23,787 kPa | 3,450 psi |
|---|---|---|
| Auxiliary Flow (high-flow option) | 120 L/min | 32 gal/min |
| Auxiliary Flow (standard) | 78 L/min | 21 gal/min |
About the John Deere 324G skid steer loader
Skid steer loaders are the all-rounders of the jobsite: grading, loading, moving pallets and material, snow clearing and site cleanup. On wheels they are quick between tasks and kind to hard surfaces, and the quick-attach plate takes buckets, forks, augers, brooms and more.
The John Deere 324G is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
