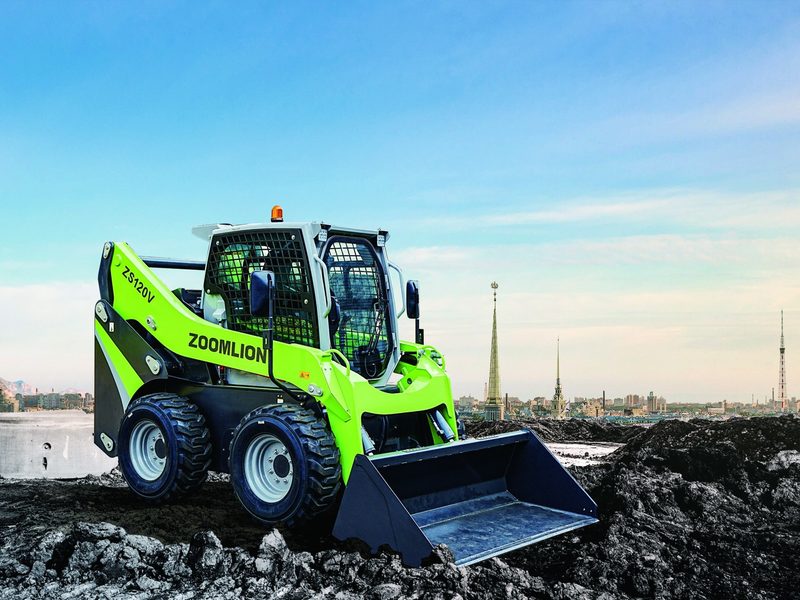

ZoomlionZS120V Skid Steer Loader
ZS120V Skid Steer Loader · Skid Steer Loaders
Full specifications
Metric and imperial as published by Zoomlion. 32 values shown. 3 further values are still being confirmed with the manufacturer and are not shown.
Dimensions
| Overall Length (Without Bucket) | 2,865 mm | 112.88 in |
|---|---|---|
| Ground Clearance | 215 mm | 8.47 in |
| Front Turning Radius (With Bucket) | 2,213 mm | 87.29 in |
| Overall Length (With Bucket) | 3,636 mm | 143.26 in |
| Tire Edge Width | 1,846 mm | 72.73 in |
| Max. Horizontal Height of Bucket Bottom | 3,128 mm | 123.24 in |
| Departure Angle | 25 deg | 25 deg |
| Tail Length | 1,015 mm | 39.99 in |
| Front Turning Radius (Without Bucket) | 1,367 mm | 53.86 in |
| Overall Height (To Cab Top) | 2,065 mm | 81.36 in |
| Rear Turning Radius | 1,732 mm | 68.24 in |
| Bucket Hinge Pin Height | 3,240 mm | 127.66 in |
| Bucket Edge Width | 1,905 mm | 75.05 in |
Performance
| Operating Weight | 3,900 kg | 8,580 lb |
|---|---|---|
| Tipping Load | 2,770 kg | 6,094 lb |
| Max. Bucket Breakout Force | 25.9 kN | 5,822.55 lbf |
| Max. Gradeability | 25 deg | 46 % |
| Standard Bucket Capacity | 0.6 m3 | 0.79 yd3 |
| Max. Arm Breakout Force | 23.1 kN | 5,193.09 lbf |
Hydraulics
| Travel System Hydraulic Pressure | 32 MPa | 4,641.28 psi |
|---|---|---|
| Hydraulic Tank (Standard Level) | 27.5 L | 7.26 gal |
| Work Equipment Hydraulic Pressure | 21 MPa | 3,045.84 psi |
| Hydraulic System (Standard Level) | 80 L | 21.12 gal |
Engine
| Emission Standard | EPA T4F | |
|---|---|---|
| Coolant (Standard Level) | 11 L | 2.9 gal |
| Rated Power | 53.4 kW | 71.56 hp |
| Fuel Tank (Full) | 90 L | 23.76 gal |
| Rated Speed | 2,400 rpm |
Undercarriage
| Tread Width | 1,460 mm | 57.52 in |
|---|
Working Range
| Max. Dump Height | 2,521 mm | 99.33 in |
|---|---|---|
| Max. Operating Height | 4,115 mm | 162.13 in |
| Bucket Tilting Angle at Maximum Height | 40 deg | 40 deg |
About the Zoomlion ZS120V skid steer loader
Skid steer loaders are the all-rounders of the jobsite: grading, loading, moving pallets and material, snow clearing and site cleanup. On wheels they are quick between tasks and kind to hard surfaces, and the quick-attach plate takes buckets, forks, augers, brooms and more.
The Zoomlion ZS120V is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
