Home › Equipment › John Deere 325G

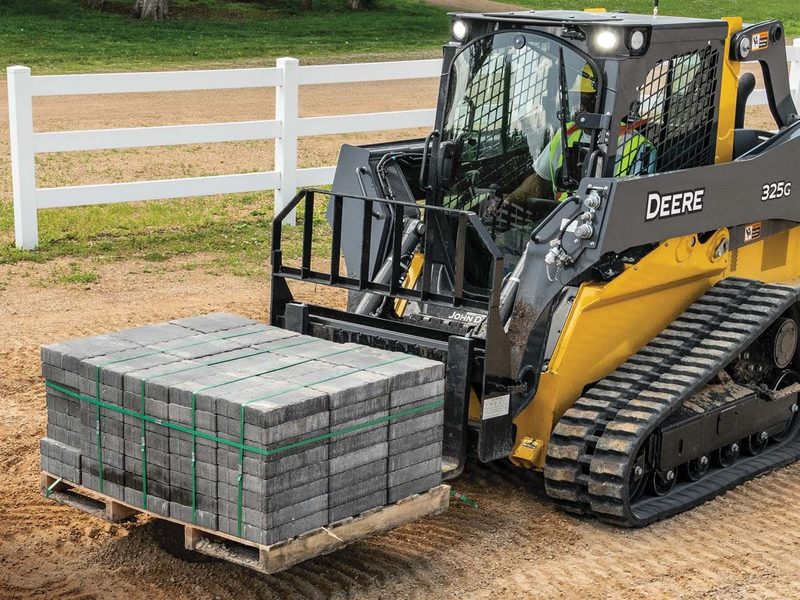

John Deere325G Compact Track Loader
John Deere 325G Compact Track Loader (Tracked) · Compact Track Loaders
Operating weight4,313 kg
Rated capacity1,680 kg
Engine power54.8 kW
EngineYanmar 4TNV98CT
Max travel speed13.2 km/h
Emission standardEPA Final Tier 4 / EU Stage IV
Full specifications
Metric and imperial as published by John Deere. 38 values shown.
Dimensions
| Angle of Departure | 30.5 deg | 30.5 deg |
|---|---|---|
| Overall Width (320 mm track) | 1,820 mm 1,900 mm / 74.7 in on 400 mm tracks. Worth checking against your trailer width and gate access. | 71.5 in |
| Front Turn Radius (foundry bucket) | 2,030 mm | 80 in |
| Overall Height (to top of ROPS) | 2,060 mm | 81.1 in |
| Ground Clearance | 240 mm | 9.3 in |
| Overall Length (with foundry bucket) | 3,460 mm Length with the construction bucket is not published for this model. | 136.3 in |
| Overall Length (without bucket) | 2,850 mm | 112.3 in |
Performance
| SAE Rated Operating Capacity (35% tipping) | 1,176 kg | 2,590 lb |
|---|---|---|
| Travel Speed (low range) | 8.4 km/h | 5.2 mph |
| Max Travel Speed (2-speed high, standard) | 13.2 km/h | 8.2 mph |
| Boom Breakout Force (foundry bucket) | 2,384 kg | 5,250 lb |
| SAE Rated Operating Capacity (50% tipping) | 1,680 kg | 3,700 lb |
| Operating Weight (400 mm track) | 4,381 kg | 9,650 lb |
| Ground Pressure (400 mm track) | 32.4 kPa Wide-track option. Lower ground pressure for wet or sensitive ground. | 4.7 psi |
| Tractive Effort | 3,859 kgf | 8,500 lbf |
| Operating Weight (320 mm track) | 4,313 kg Standard 320 mm track. 4,381 kg / 9,650 lb on 400 mm tracks. | 9,500 lb |
| Bucket Breakout Force (foundry bucket) | 3,973 kg Same loader linkage and bucket as the 324G. | 8,750 lb |
| Tipping Load (foundry bucket) | 3,360 kg | 7,400 lb |
| Ground Pressure (320 mm track) | 39.3 kPa Low ground pressure is the main reason to choose tracks over wheels on soft ground. | 5.7 psi |
Working Range
| Dump Height (foundry bucket) | 2,590 mm | 102.1 in |
|---|---|---|
| Bucket Rollback at Ground Level | 34 deg | 34 deg |
| Max Height to Hinge Pin | 3,200 mm | 126.1 in |
| Dump Reach (foundry bucket) | 750 mm 940 mm / 37 in with the construction bucket, measured to the cutting edge. | 29.7 in |
| Dump Angle at Full Lift Height | 41 deg | 41 deg |
Engine
| Displacement | 3.3 L | |
|---|---|---|
| Engine Model | Yanmar 4TNV98CT Same engine as the 324G. An optional Yanmar 4TNV98T at Interim Tier 4 is listed in the equipment list. | |
| Fuel Tank | 79 L | 21 gal |
| Rated Speed | 2,500 rpm | |
| DEF Required | No No diesel exhaust fluid (DEF) to top up. | |
| Emission Standard | EPA Final Tier 4 / EU Stage IV | |
| Net Power (SAE J1349 / ISO 9249) | 52.5 kW | 70 hp |
| Rated Power (gross, ISO 14396) | 54.8 kW | 74 hp |
Undercarriage
| Standard Track Width | 320 mm | 12.6 in |
|---|---|---|
| Optional Track Width | 400 mm | 15.8 in |
| Track Rollers / Idlers per Side | 4 triple-flange rollers / 2 double-flange idlers |
Hydraulics
| System Pressure at Couplers | 23,787 kPa | 3,450 psi |
|---|---|---|
| Auxiliary Flow (standard) | 78 L/min | 21 gal/min |
| Auxiliary Flow (high-flow option) | 120 L/min | 32 gal/min |
About the John Deere 325G compact track loader
Compact track loaders do the work of a skid steer on tracks, so they keep working in mud, sand and snow and leave less damage on soft ground. They are a strong fit for grading, landscaping, site prep and work on slopes.
The John Deere 325G is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
