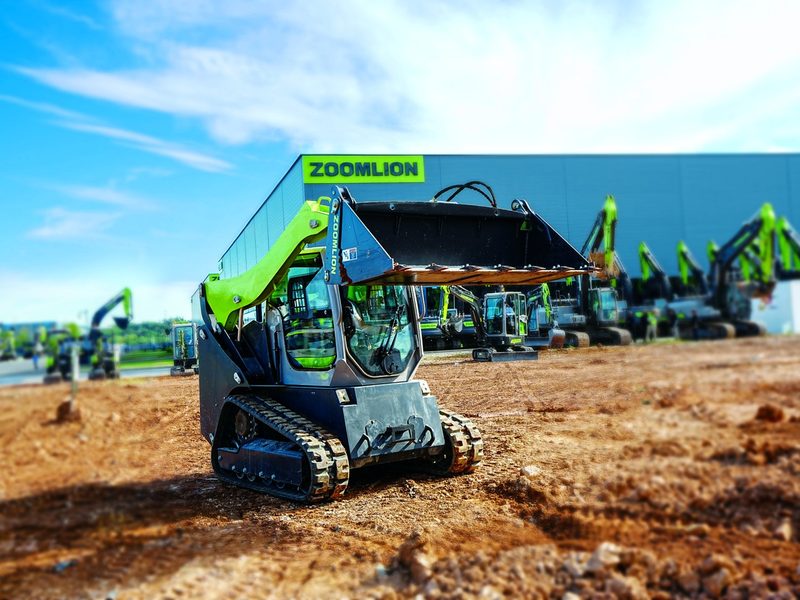

ZoomlionZT090V Compact Track Loader
ZT090V Compact Track Loader · Compact Track Loaders
Class0.9 t
Operating weight3,520 kg
Rated capacity917 kg
Engine power47.9 kW
EngineKubota V2403-CR
Bucket capacity0.44 m³
Max travel speed11.5 km/h
Emission standardEU Stage V
Full specifications
Metric and imperial as published by Zoomlion. 23 values shown. 7 further values are still being confirmed with the manufacturer and are not shown.
Performance
| Standard Bucket Capacity | 0.44 m3 | 0.58 yd3 |
|---|---|---|
| Overturning (Tipping) Load | 2,620 kg | 5,764 lb |
| Ground Specific Pressure | 34 kPa | psi |
| Max. Travel Speed (Low Gear) | 11.5 km/h | mph |
| Rated Load | 917 kg | 2,017.4 lb |
| Max. Travel Speed (High Gear, optional) | 16.6 km/h | mph |
Working Range
| Bucket Tilting Angle at Maximum Height | 42 deg | 42 deg |
|---|---|---|
| Max. Operating Height | 3,855 mm | 151.77 in |
| Max. Dump Height | 2,390 mm | 94.09 in |
| Dump Reach | 830 mm | 32.68 in |
| Bucket Retracting Angle at Flat Ground | 24 deg | 24 deg |
Dimensions
| Departure Angle | 30 deg | 30 deg |
|---|---|---|
| Bucket Hinge Pin Height | 3,068 mm | 120.79 in |
| Overall Length (With Bucket) | 3,364 mm | 132.44 in |
| Overall Length (Without Bucket) | 2,636 mm | 103.78 in |
| Ground Clearance | 230 mm | 9.06 in |
| Overall Height (To Cab Top) | 2,035 mm | 80.12 in |
| Max. Horizontal Height of Bucket Bottom | 2,901 mm | 114.21 in |
Engine
| Rated Power | 47.9 kW | 64.19 hp |
|---|
Undercarriage
| Standard Track Width | 320 mm | 12.6 in |
|---|---|---|
| Gauge of Tracks | 1,363 mm | 53.7 in |
| Track Ground Length | 1,420 mm | 55.91 in |
| Optional Track Width | 400 mm | 15.75 in |
About the Zoomlion ZT090V compact track loader
Compact track loaders do the work of a skid steer on tracks, so they keep working in mud, sand and snow and leave less damage on soft ground. They are a strong fit for grading, landscaping, site prep and work on slopes.
The Zoomlion ZT090V is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
