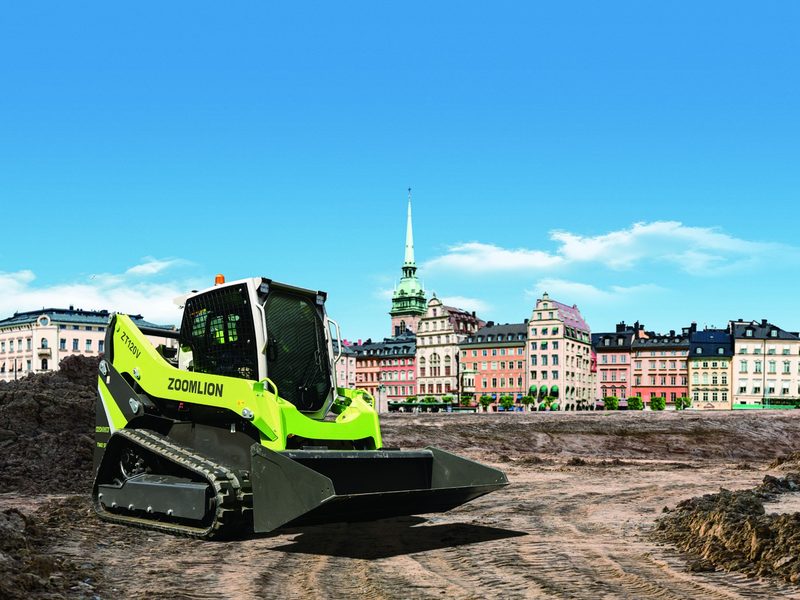

ZoomlionZT120V Compact Track Loader
ZT120V Compact Track Loader · Compact Track Loaders
Full specifications
Metric and imperial as published by Zoomlion. 30 values shown. 1 further value is still being confirmed with the manufacturer and is not shown.
Undercarriage
| Standard Track Width | 320 mm | 12.61 in |
|---|---|---|
| Track Edge Width | 1,885 mm | 74.21 in |
| Optional Track Width | 450 mm | 17.73 in |
| Track Ground Length | 1,556 mm | 61.26 in |
Working Range
| Bucket Tilting Angle (L) | 84 deg | 84 deg |
|---|---|---|
| Bucket Retracting Angle at Flat Ground | 24 deg | 24 deg |
| Max. Operating Height | 4,131 mm | 162.64 in |
| Bucket Tilting Angle at Maximum Height | 40 deg | 40 deg |
| Max. Dump Height | 2,510 mm | 98.82 in |
Engine
| Emission Standard | EPA T4F | |
|---|---|---|
| Rated Speed | 2,400 rpm | |
| Rated Power | 53.4 kW | 71.56 hp |
| Model | Kubota |
Dimensions
| Overall Length (With Bucket) | 3,636 mm | 143.15 in |
|---|---|---|
| Departure Angle | 30 deg | 30 deg |
| Max. Horizontal Height of Bucket Bottom | 3,060 mm | 120.47 in |
| Rear Turning Radius | 1,637 mm | 64.45 in |
| Overall Length (Without Bucket) | 2,878 mm | 113.31 in |
| Bucket Edge Width | 1,905 mm | 75 in |
| Ground Clearance | 230 mm | 9.06 in |
| Bucket Hinge Pin Height | 3,261 mm | 128.39 in |
| Tail Length | 740 mm | 29.13 in |
| Front Turning Radius (Without Bucket) | 1,356 mm | 53.39 in |
| Front Turning Radius (With Bucket) | 2,307 mm | 90.83 in |
| Overall Height (To Cab Top) | 2,067 mm | 81.38 in |
Performance
| Standard Bucket Capacity | 0.6 m3 | 0.79 yd3 |
|---|---|---|
| Tipping Load | 3,458 kg | 7,607.6 lb |
| Bucket Breakout Force | 25.9 kN | 5,822.55 lbf |
| Lift Arm Breakout Force | 23.1 kN | 5,193.09 lbf |
| Operating Weight | 4,350 kg | 9,570 lb |
About the Zoomlion ZT120V compact track loader
Compact track loaders do the work of a skid steer on tracks, so they keep working in mud, sand and snow and leave less damage on soft ground. They are a strong fit for grading, landscaping, site prep and work on slopes.
The Zoomlion ZT120V is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
Maintenance parts & service intervals
Genuine Zoomlion part numbers and replacement intervals from the Zoomlion Canada maintenance parts list. Intervals are operating hours. Follow the operator’s manual for your serial number, and ask us to confirm the right number for your machine.
| Item | Part no. | Qty | Replace |
|---|---|---|---|
| Engine Oil Filter Element | 1009900560 | 1 | Initial replacement at 50 h; then every 500 h |
| Diesel Fuel Filter Element | 1009826529 | 1 | Every 500 h |
| Fuel/Water Separator Filter Element | 1010601709 | 1 | Every 500 h |
| Inner Air Filter Element (Safety Element) | 1010600341 | 1 | Every 500 h |
| Outer Air Filter Element (Primary Element) | 1010600339 | 1 | Every 500 h |
| Hydraulic Return Filter Element | 1010602484 | 1 | Every 500 h |
| Air Cap (Hydraulic-Tank Breather Filter Element) | 1999905878 | 1 | Every 500 h |
| HVAC Recirculation Filter Element | 1139804799 | 1 | Every 500 h |
| HVAC Fresh-Air Filter Element | 1139806348 | 1 | Every 500 h |
| Mobil Delvac Engine Oil, CK-4 15W-40, 208 L | 204100271 | 11.2 L | Every 500 h |
| Mobil Delvac 1 Engine Oil, 5W-40 CK-4, 6 × 4 L | 204100325 | 11.2 L | Every 500 h |
| Kangsheng Premium Coolant, -36 °C, 1,000 L | 202270060 | 11 L | Every 2,000 h |
| Mobil Coolant, -45 °C, 208 L (180 kg) | 202270050 | 11 L | Every 2,000 h |
| L-HM 46 Hydraulic Oil, Bulk | 204060457 | 80 L | Every 1,000 h |
| Mobil DTE 10 Excel 46 Hydraulic Oil, 208 L/drum | 204060111 | 80 L | Every 1,000 h |
| No. 2 EP Lithium Grease, 175 kg | 204040553 | 4.5 Kg | Replace as required |
| Compressor Assembly | 1130102796 | 1 | As required |
| Compressor-to-Condenser Hose | 1130102042 | 1 | As required |
| Condenser-to-Receiver Hose | 1130102043 | 1 | As required |
| Receiver-to-Evaporator Hose | 1130102044 | 1 | As required |
| Evaporator-to-Compressor Hose | 1130102045 | 1 | As required |
| Heater Hose | 1130102525 | 1 | As required |
| Heater Hose | 1130102526 | 1 | As required |
47 wear and consumable part numbers (bucket teeth, cutting edges, pins, bushings, seals, undercarriage) are listed for this machine in the parts finder.
