Home › Equipment › Zoomlion ZE36GU

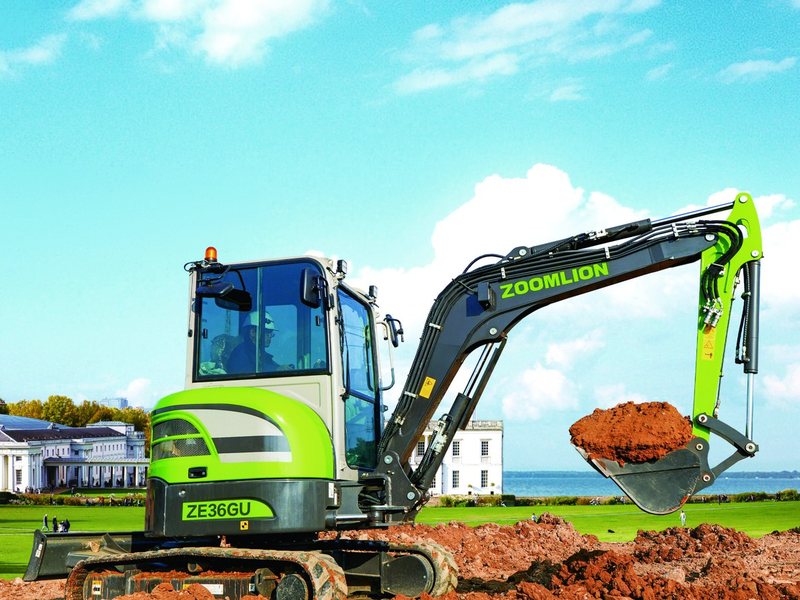

ZoomlionZE36GU Mini Excavator
ZE36GU Excavator · Crawler Excavators
Class3.79 t
Operating weight3,790 kg
Engine power18.2 kW
EngineKubota D1703
Bucket capacity0.1 m³
Max travel speed4.2 km/h
Emission standardEU Stage V / Tier 4F
Full specifications
Metric and imperial as published by Zoomlion. 26 values shown.
Performance
| Standard Bucket Capacity | 0.1 m3 | 0.13 yd3 |
|---|---|---|
| Max. Drawbar Pull | 31.6 kN | 7,104 lbf |
| Digging Force of Stick | 19.5 kN | 4,384 lbf |
| Slewing Speed | 9 r/min | |
| Digging Force of Bucket | 31.5 kN | 7,802 lbf |
| Traveling Speed (high/low) | 4.2/2.3 km/h | 2.6/1.4 mph |
| Operating Weight | 3,790 kg | 8,338 lb |
Engine
| Engine Model | D1703 | |
|---|---|---|
| Engine Manufacturer | Kubota | |
| Displacement | 1.647 L | 100 in3 |
| Rated Power | 18.2 kW / 2200 rpm | 24 hp / 2200 rpm |
| Emission Standard | EU Stage V / Tier 4F |
Operating Range
| Max. Digging Height | 4,860 mm | 15'11" |
|---|---|---|
| Max. Digging Reach at Ground Level | 5,410 mm | 17'9" |
| Max. Digging Reach | 5,525 mm | 18'2" |
| Max. Digging Depth | 3,005 mm | 9'10" |
| Max. Dumping Height | 3,440 mm | 11'3" |
Dimensions
| Height | 2,530 mm | 8'4" |
|---|---|---|
| Boom Length | 2,540 mm | |
| Length of Track on Ground | 1,640 mm | 5'5" |
| Bucket Width | 580 mm | 1'11" |
| Track Gauge | 1,400 mm | 4'7" |
| Width | 1,700 mm | 5'7" |
| Stick Length | 1,350 mm | 4'5" |
| Tail Slewing Radius | 850 mm | 2'9" |
| Length | 4,915 mm | 16'2" |
About the Zoomlion ZE36GU mini excavator
Mini excavators are built for tight access: residential lots, landscaping, utility and service trenches, footings and interior demolition. They dig and backfill where a full-size machine cannot fit, and leave a smaller footprint on finished ground.
The Zoomlion ZE36GU is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
More crawler excavators
Specifications are taken from the manufacturer's published literature and are provided
for guidance. Configuration, attachments and options change these figures. Confirm the
exact specification for your machine with X-Iron before ordering or quoting.
Rental rates are quoted per job — contact us
for current pricing, delivery and deposit.
