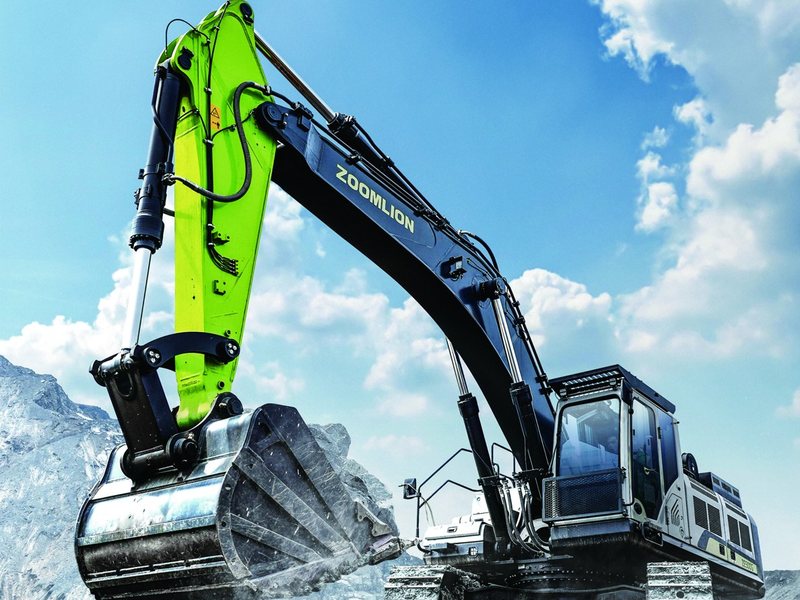

ZoomlionZE500G Crawler Excavator

Name: Zoomlion ZE500G Crawler Excavator
Brand: Zoomlion
SKU: ZE500G

ZE500G Excavator · Crawler Excavators

For saleFor rentParts & service

Class50 t

Operating weight51,000 kg

Engine power298 kW

EngineCummins X12

Bucket capacity2.65 m³

Max travel speed5.5 km/h

Emission standardEU Stage V / Tier 4F

Request a quote Brochure (PDF) Email sales

Full specifications

Metric and imperial as published by Zoomlion. 25 values shown.

Engine

Rated Power	298 kW / 2100 rpm	400 hp / 2100 rpm
Engine Model	X12
Emission Standard	EU Stage V / Tier 4F
Engine Manufacturer	CUMMINS
Displacement	11.8 L	720 in3

Dimensions

Length	11,685 mm	460.04 in
Width	3,610 mm	142.13 in
Boom Length	6,500 mm	255.91 in
Height	4,015 mm	158.07 in
Tail Slewing Radius	3,787 mm	149.09 in
Length of Track on Ground	4,400 mm	173.23 in
Track Gauge	2,750 mm	108.27 in
Stick Length	2,550 mm	100.39 in

Performance

Max. Drawbar Pull	404 kN	90,823 lbf
Slewing Speed	9.2 r/min
Standard Bucket Capacity	2.65 (2.65-3.3) m3	3.47 (3.47-4.32) yd3
Digging Force of Bucket	329 kN	73,962 lbf
Digging Force of Stick	303 kN	68,117 lbf
Traveling Speed (high/low)	5.5/3.3 km/h	3.42/2.05 mph
Operating Weight	51,000 kg	112,436 lb

Operating Range

Max. Digging Reach at Ground Level	10,515 mm	413.98 in
Max. Digging Depth	6,495 mm	255.71 in
Max. Digging Reach	10,763 mm	423.74 in
Max. Dumping Height	6,845 mm	269.49 in
Max. Digging Height	10,053 mm	395.79 in

About the Zoomlion ZE500G crawler excavator

Crawler excavators dig, trench, load trucks and handle material on tracks, which spreads their weight and keeps them working on soft or uneven ground. Choose the size by the depth you need to reach, the bucket you want to swing and the access into the site.

The Zoomlion ZE500G is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
