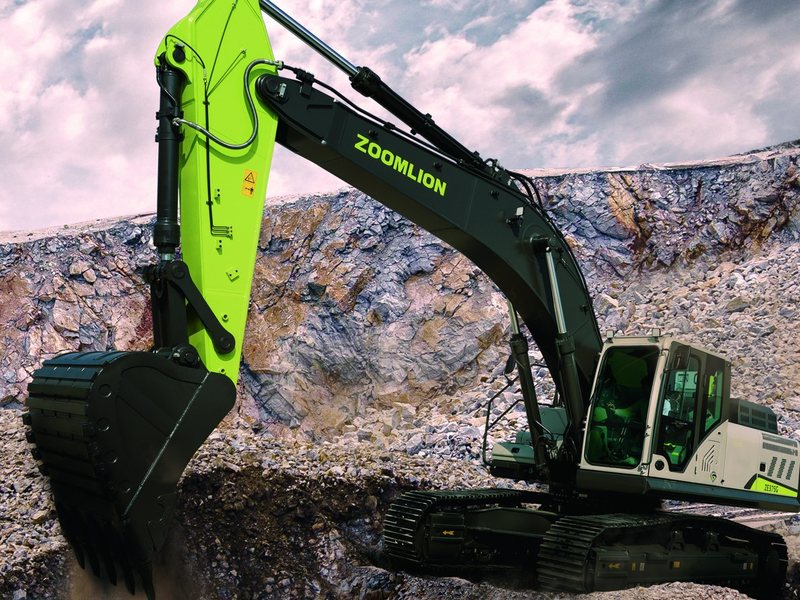

ZoomlionZE375G Crawler Excavator
ZE375G Excavator · Crawler Excavators
Full specifications
Metric and imperial as published by Zoomlion. 26 values shown.
Engine
| Rated Power | 242 kW / 1800 rpm | 324 hp / 1800 rpm |
|---|---|---|
| Engine Model | L9 | |
| Engine Manufacturer | CUMMINS | |
| Emission Standard | EU Stage V / Tier 4F | |
| Displacement | 8.9 L | 543 in3 |
Dimensions
| Bucket Width | 1,600 mm | 5'3" |
|---|---|---|
| Length of Track on Ground | 4,140 mm | 13'7" |
| Length | 11,230 mm | 36'10" |
| Tail Slewing Radius | 3,500 mm | 11'6" |
| Track Gauge | 2,590 mm | 8'6" |
| Boom Length | 6,400 mm | 20'11" |
| Width | 3,390 mm | 11'1" |
| Height | 3,780 mm | 12'5" |
| Stick Length | 2,900 mm | 9'6" |
Performance
| Operating Weight | 37,500 kg | 82,500 lb |
|---|---|---|
| Standard Bucket Capacity | HD 1.9 (1.6-2.2) m3 Heavy-duty bucket. | HD 2.49 (2.09-2.88) yd3 |
| Slewing Speed | 10.6 r/min | |
| Digging Force of Stick | 204 kN | 45,861 lbf |
| Digging Force of Bucket | 248 kN | 55,753 lbf |
| Max. Drawbar Pull | 320 kN | 71,939 lbf |
| Traveling Speed (high/low) | 5.2/3.1 km/h | 3.2/1.9 mph |
Operating Range
| Max. Digging Depth | 7,075 mm | 23'3" |
|---|---|---|
| Max. Digging Reach | 10,870 mm | 35'8" |
| Max. Digging Reach at Ground Level | 10,675 mm | 35'0" |
| Max. Dumping Height | 6,885 mm | 22'7" |
| Max. Digging Height | 10,010 mm | 32'10" |
About the Zoomlion ZE375G crawler excavator
Crawler excavators dig, trench, load trucks and handle material on tracks, which spreads their weight and keeps them working on soft or uneven ground. Choose the size by the depth you need to reach, the bucket you want to swing and the access into the site.
The Zoomlion ZE375G is available to rent by the day, week or 4-week term, to buy, or on rent-to-own, where most of the rent paid comes off the purchase price. We are based in Edmonton, Alberta and deliver across Western Canada; delivery is quoted per job.
Maintenance parts & service intervals
Genuine Zoomlion part numbers and replacement intervals from the Zoomlion Canada maintenance parts list. Intervals are operating hours. Follow the operator’s manual for your serial number, and ask us to confirm the right number for your machine.
| Item | Part no. | Qty | Replace |
|---|---|---|---|
| Fuel/Water Separator Filter Element | 1000400961 Interchangeable with 1220002540 | 1 | Every 500 h |
| Fine Filter Element | 1000400461 | 1 | Every 500 h |
| Engine Oil Filter Element | 1009806040 | 1 | Every 500 h |
| Outer Air Filter Element (Primary Element) | 1000100033 Interchangeable with 1010601492 | 1 | Every 500 h |
| Inner Air Filter Element (Safety Element) | 1000100034 Interchangeable with 1010601493 | 1 | Every 1,000 h |
| HVAC Fresh-Air Filter (DENSO) | 1139803848 | 1 | Clean every 250 h / replace as required |
| HVAC Recirculation Filter (DENSO) | 1130101127 | 1 | Clean every 250 h / replace as required |
| HVAC Fresh-Air Filter (Taibo) | 1130100978 Interchangeable with 1220002551 | 1 | Clean every 250 h / replace as required |
| HVAC Recirculation Filter (Taibo) | 1139804232 Interchangeable with 1220002550 | 1 | Clean every 250 h / replace as required |
| Breather Filter Element | 1010601284 Interchangeable with 1010601496 | 1 | Every 500 h |
| Breaker-Circuit Filter Element | 1010601412 Interchangeable with 1220001504 | 1 | Every 500 h |
| Hydraulic Suction Filter Element | 1010601935 Interchangeable with 1220002543 | 1 | Initial replacement at 1,000 h; then every 2,000 h |
| Hydraulic Return Filter Element | 1010601936 Interchangeable with 1220002542 | 1 | Initial replacement at 1,000 h; then every 2,000 h |
| Pilot Filter Element | 1010601599 Interchangeable with 1220002548 | 1 | Every 1,000 h |
| Kangsheng Blue Supreme Engine Oil, CK-4 15W-40, 18 L | 204100360 | 30 L | Every 500 h |
| Kangsheng Premium Coolant, -36 °C, 18 L | 202270059 | 31 L | Every 4,000 h |
| Great Wall AE-S46 Hydraulic Oil, 200 L (170 kg) | 204060454 | 300 L | Every 4,000 h |
| Swing Gear Oil, 4 L/container (85W-140) | 204050064 | 10.5 L | Initial replacement at 500 h; then every 1,000 h |
| Travel Final-Drive Gear Oil, 18 L/container (85W-140) | 204050063 | 20 L | Initial replacement at 500 h; then every 1,000 h |
| No. 2 EP Lithium Grease, 12 kg/drum | 204040492 Interchangeable with 204040595 | 40 Kg | Top up as required |
| No. 3 General-Purpose Lithium Grease, 12 kg | 204040590 Interchangeable with 204040594 | 40 Kg | Top up as required |
61 wear and consumable part numbers (bucket teeth, cutting edges, pins, bushings, seals, undercarriage) are listed for this machine in the parts finder.
